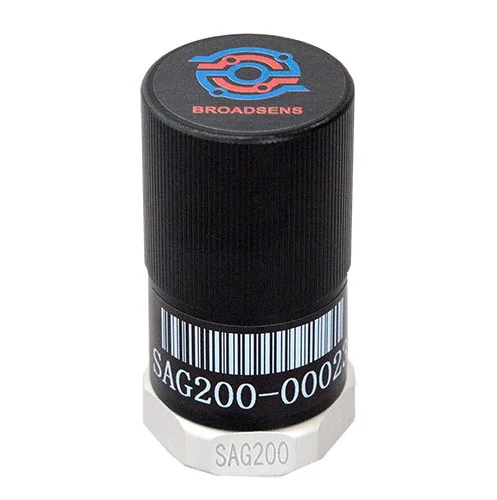

Wireless IMU (Inertial Measurement Unit) SAG200 is an 9-axis Attitude and Heading Reference system (AHRS). The wireless IMU sensor SAG200 consists of 3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer. SAG200 measures 9-axis data, and compute Euler angles including pitch, yaw and roll angles on the fly. The sensor sends raw acceleration, gyroscope, magnetic fields data, along with pitch, yaw and roll data to Broadsens edge-computing gateway. Wireless IMU SAG200 has the best battery efficiency among all IMUs in the industry, which makes the sensor ideal for long-term remote monitoring and industrial IOT applications. The idle average current is less than 2uA when the sensor is waiting for commands from the user. The average power consumption of SAG200 is less than 5mA during measurements and data transmission.
Wireless IMU SAG200 computes the Euler angle (pitch, yaw and roll) inside the sensor based on 3-axis acceleration, 3-axis angular rate and 3-axis compass data, and sends the raw acceleration, gyro, magnetic field and Euler data to the gateway in real time. SAG200 can be used for both dynamic and static angle measurements. The accelerometer range is user-adjustable from 2g to 16g, and angular rate range is user-adjustable from 250dps to 2000 dps. Multiple wireless IMU SAG200 can be allocated to the same group for parallel monitoring. For a large and heavy machine such as excavators or bulldozers, multiple points can be monitored at the same time with the wireless IMU SAG200.
Each edge-computing gateway can control multiple groups of wireless IMU SAG200. Wireless IMU sensor data acquisition can be initiated manually, by schedule with timer, or remotely through MQTT control.
Specifications
| Parameters | Description |
|---|---|
| Acceleration range | ±2g, ±4g, ±8g and ±16g adjustable |
| Gyroscope range | ±250dps, ±500dps, ±1,000dps, ±2,000dps adjustable |
| Magnetometer range | Up to ±4900 μT |
| Euler angle range | Pitch, yaw, roll: -180 – 180 degree |
| Euler angle accuracy | Pitch, roll: ±0.2; yaw: ±1 (note: calibration required, at 250dps, 2g range) |
| Resolution | 16-bit ADC |
| Output data rate (ODR) | 50Hz |
| Measurement & transmit mode | Continuous real-time sampling and transmission |
| Power consumption | <2uA idle; < 5mA with data transmission, data collection and AHRS (attitude and heading reference system) computation |
| Power supply | ER18505 battery, 4,000 mAh, replaceable |
| Wireless protocol | 2.4GHz ultra-low power proprietary |
| FCC ID/IC ID | X8WBC833M / 4100A-BC833M |
| Transmission distance | Up to 300m (900 ft) line of sight, open space |
| Size | 37x71 mm DxH (1.46x2.80 inch) |
| Weight | 117 g (4.1 oz) including battery |

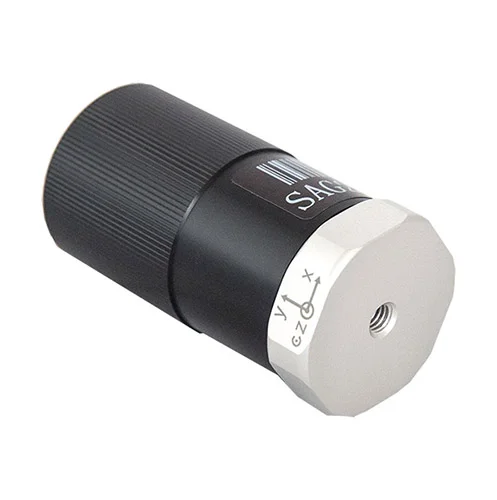

| Mounting method | M6 mounting stud, mounting pad, magnet mount, epoxy mount |
| Environment | Working temperature: -40 - 85 Celsius; storage temperature: -55 - 85 Celsius; IP68 waterproof (IP69K optional) |
Features
In summary, the wireless IMU SAG200 has the following main features:
. Ultra-low power consumption
. Rugged design for industrial applications
. Best battery efficiency with long battery life
. Multiple IMU parallel measurements
. Multiple group sequential measurements with timer
. History data review
. CSV file export
. Remote control and data transmission via internet
Applications
Applications of wireless IMU AHRS sensor SAG200 include but not limited to:
- Heavy machinery
- Platform stability
- Auto/truck safety system
- Industrial Control, automation & productivity
- Machine condition monitoring
- Predictive maintenance
- Robots & UAVs
