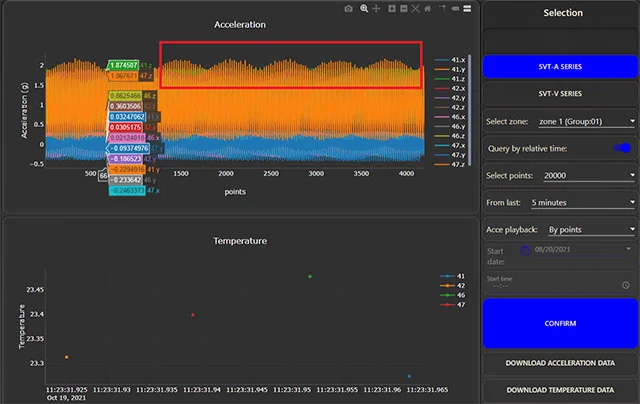

BroadVibra
BroadVibra vibration analysis software can control multiple ultra-low power wireless vibration sensors. It can adjust data acquisition parameters such as sampling mode, sampling rate, provide advanced vibration analysis such as FFT, vibration trend analysis, filtering (enveloping), etc. The software can export the raw vibration (acceleration) data to CSV format.

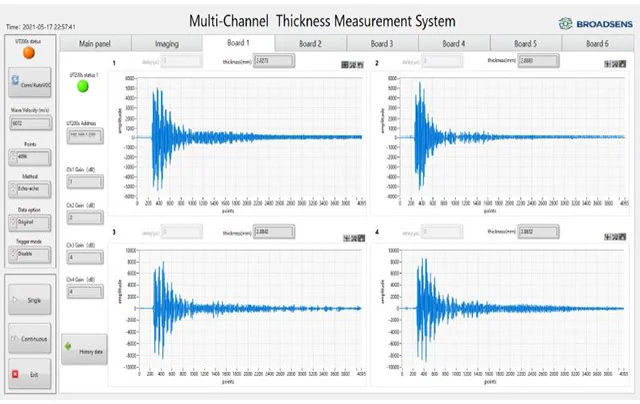

BroadMTM
BroadMTM software can control up to 7 UT200s high resolution ultrasonic thickness gauges that provides up to 28-ch parallel thickness/thickness loss/corrosion measurement. The software supports adjustable sampling points, first-echo, echo-echo and echo-II (water submerge) thickness measurements.

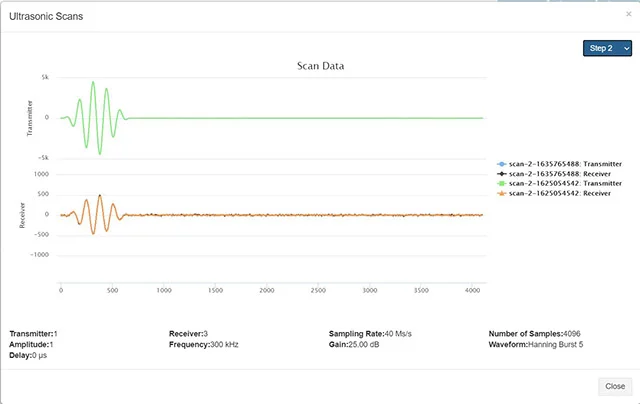

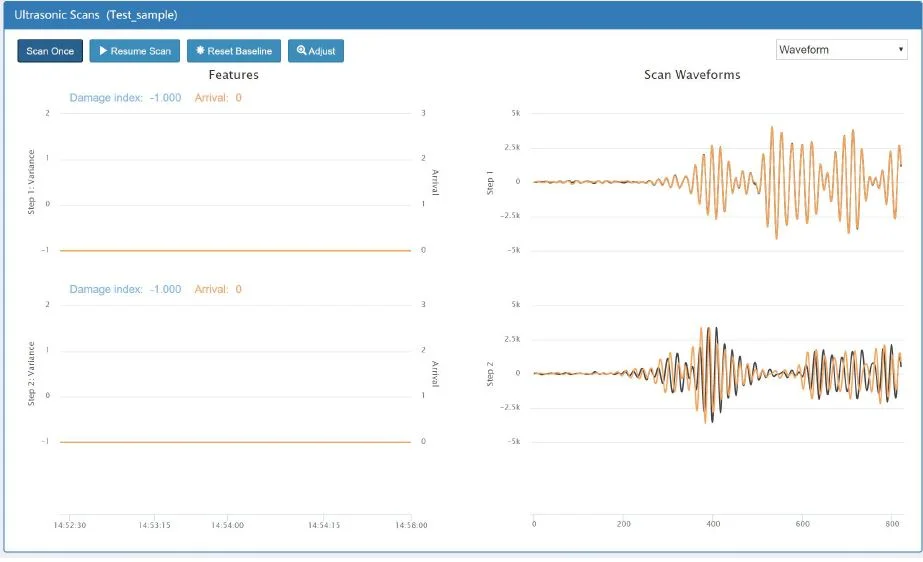

BroadScan

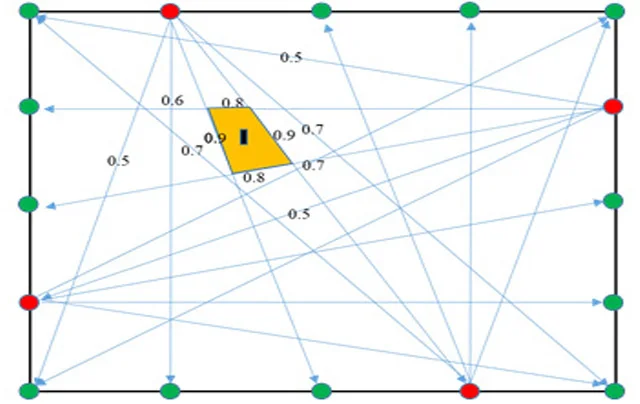

BroadScan software supports Broadsens high performance multichannel ultrasonic scanners D100, advanced industrial scanner D110C and popular 16-ch scanner D200. BroadScan software allows user to set up periodic scan of structures for combinations of different scan channels. The software can review the history data, visualize data and provide damage detection using baseline method.
Acquisition
Multiple sensor data acquisition is much easier thanks to integrated data acquisition device and multi-function sensors.
Analysis
Feature extraction, multiple path analysis, high-pass and low-pass filtering, correlation analysis, Fourier transform, Wavelet analysis

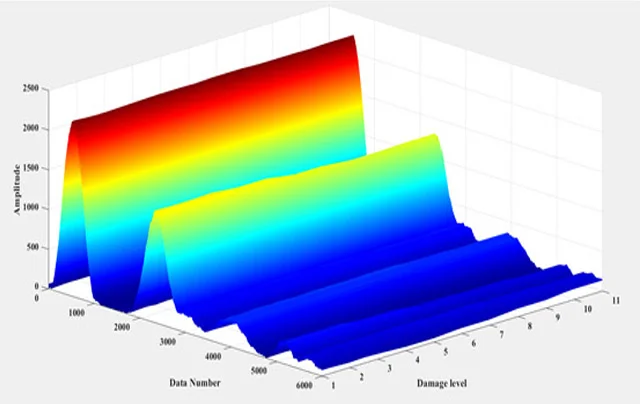

Visulization
Data and waveform are visualized intuitively. 3D model can be developed to show the machine or structure condition clearly.
"One of the best companies I have ever worked with"
~ Joe Miller
Data logging
Easily log sensor data and review sensor data. Compare sensor data in the selected time period
Graphic tool
Show data in time and frequency domain. Apply filters to remove noise and plot data
Alarm notification
User defined threshold to alarm potential machine or structural failure. Notification via message or emails
