Broadsens wireless ultrasonic thickness sensors are ideal for corrosion erosion monitoring, bolt preload and tension measurements and monitoring. The wireless ultrasonic sensors have wide measurement range with high accuracy. The wireless ultrasonic thickness sensors not only can measure the thickness change in real time, but also have data logger ability. In real time mode, users can measure thickness, bolt length (preload & tension) remotely through Broadsens's edge-computing gateways. The edge-computing gateways can store years of measurement data, and stream data to clouds optionally.
Key Features
The sensors have the following features:
- The only solution of instant response with 10 year or more battery life in the industry
- Large measurement ranges from 3mm up to 1,000mm
- High resolution of 0.001mm with 0.01mm repeatability at room temperature
- Replaceable ultrasonic probes
- Designed for harsh environments with IP67 waterproof rating
- Data logger ability that allows the sensors to work in completely sealed metal Faraday chamber
- Parallel monitoring with multiple WUT sensors
- Scales to millions of sensors and gateways with no upper limit
- Easy installation and usage
- Cost effective

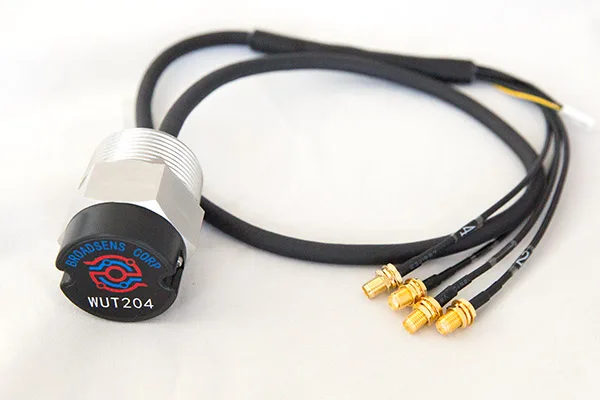

Wireless ultrasonic thickness sensor WUT204-S
Applications
- Bolt preload & tension monitoring. WUT series sensors can be used for both dynamic bolt preload measurements, and long-term bolt preload monitoring, thanks to the best battery efficiency in the industry.
- Corrosion & erosion monitoring. WUT series sensors can be installed permanently for long-term real-time corrosion & erosion monitoring of pipelines, refineries and other important infrastructures.
Specifications
| Parameters | WUT204 | |
|---|---|---|
| Number of channels | 4 | |
| Measurement interval | Default every 30s (optional 0.1s, 0.5s, 1s, 3s, 10s, 30s, 1m) | |
| Connector to probes | 750mm cable with SMA female connector | |
| Resolution | 0.001 mm | |
| Repeatability | +/- 0.01mm in room temperature | |
| Ultrasonic probes | BUP4S (single element), 550mm long, SMA male connector | BUP4D (dual element), 550mm long, SMA male connectors |
| Measurement range | 50 mm up to 1,000mm | 3mm to 60mm |
| Temperature sensor type | PT 1000 platinum temperature sensor | |
| Temperature accuracy | +/- 1 0C | |
| Battery life | 10 years or more at 30s interval; 20 years at 1m interval | |
| Power consumption | 2.3 uA idle, 41 uA average at 10s interval, 20 uA average at 30s interval | |
| Power supply | ER14335 battery pack, 3,300mA capacity, user replaceable | |
| Wireless protocol | 2.4GHz ultra-low power proprietary | |
| FCC ID/IC ID | X8WBC833M / 4100A-BC833M | |
| Transmission distance | Up to 300m (900 ft) line of sight, open space | |
| Size | WUT204-S (Screw mount enclosure): Diameter: 41mm, Height: 56mm | |
| Material & Weight | Stainless steel & industrial plastic, 295 g with extension cables | |
| Mounting method | Screw mount: 1"1/4 TP1 11.5 NPT | |
| Environment | Working temperature: -40 - 85 0C; storage temperature: -20 - 50 0C; | |
| Waterproof rating | IP67 | |
